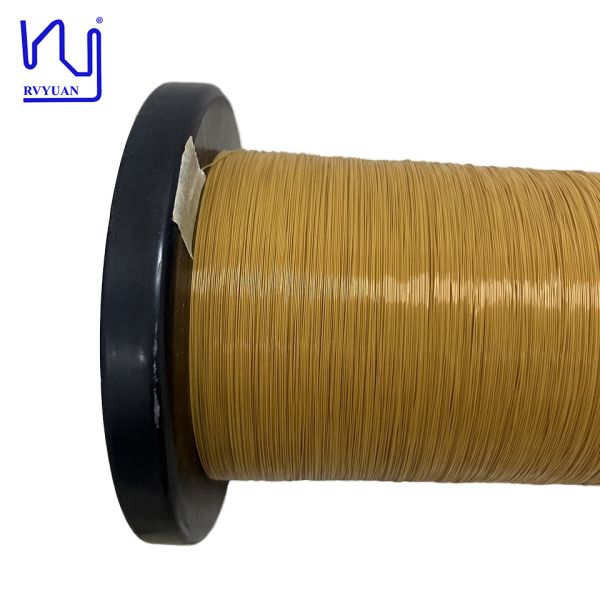

UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire

Brand Name : RVYUAN

Model Number : 0.15mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 3000 meter

Price : Negotiation

Payment Terms : T/T/Paypal

Supply Ability : 1Ton/Month

Delivery Time : 7 days

Packaging Details : Carton

Product Name : UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire

Thermal rating : 155

Single wire Diameter : 0.15mm

Conductor material : Copper

Insualtion : ETFE

Contact Now

UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire

ETFE (ethylene-tetrafluoroethylene copolymer) triple insulated wires offer numerous advantages, making them ideal for a wide range of electrical applications.

First, ETFE exhibits excellent thermal stability, enabling the wires to operate efficiently at high temperatures without performance degradation. This characteristic significantly enhances the overall reliability and lifespan of the wires.

Second, ETFE provides excellent chemical resistance, effectively protecting the wires from corrosive chemicals and environmental factors, which is crucial in industrial environments.

Furthermore, the lightweight nature of the ETFE insulation helps reduce the overall weight of electrical systems, simplifying installation and operation.

The triple-insulation design further reduces the risk of short circuits, ensuring safer operation. ETFE triple-insulated wires combine durability, safety, and efficiency, making them the preferred choice for modern electrical applications, including transformers and other high-performance equipment.

Product Specifications

Item

Standard

Test Result

Outer diameter of conductor (mm)

0.169mm(Max.)

0.163 | 0.165 | 0.163

Enamel coating thickness

0.008mm(min.)

0.013 | 0.016 | 0.014

Conductor

0.15±0.003mm

0.15 | 0.149 | 0.149

Elongation

15%(min.)

30.6 | 30.6 | 30.6

Overall dimension

0.350-0.365mm(max.)

0.359 | 0.362 | 0.359

Insulation thickness

0.1±0.01mm(min)

0.099 | 0.101 | 0.094

Pinhole

0 M/1 fault(max)

0 | 0 | 0

Resistance

1037Ω,km(max)

1007.3 | 1001.6 | 1004.8

Breakdown voltage

6KV(min)

16.6 | 17 | 17.6

Solderability(±10℃)

450℃ 3s smooth

ok | ok | ok
UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire
Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
