Class H 0.13 - 0.4mm Enameled Copper Fully insulated Wire FIW Wire

Class H 0.13 - 0.4mm Enameled Copper Fully insulated Wire FIW Wire

Fully insulated (FIW) zero-defect enamelled round copper wire ,class 180,is wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56.The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc. The wire is the best substitute material for TIW(Triple Insulated Wire).

FEATURES AND BENEFITS

• High thermal class 180;

• High break down voltage,＞15KV;

• High insulation resistance,6000Vrms,1min;

• Solderable, 390℃,2s；(no need to peel insulation);

• High cut-through temperature, 250℃,2s no cut through, Air Reflow(260℃), no crack；

• Very good winding performance, suitable for high speed winding machine.

APPLICATION

- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
- Coil-micro-motor, electric fan, transformer & etc.

PECIFICATION

Weight vs length

enameled round copper wire

copper magnet wire

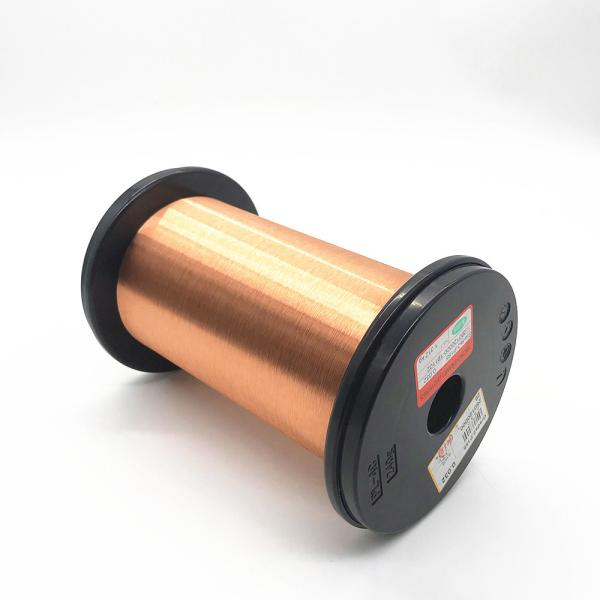

Class H 0.13 - 0.4mm Enameled Copper Fully insulated Wire FIW Wire Images
